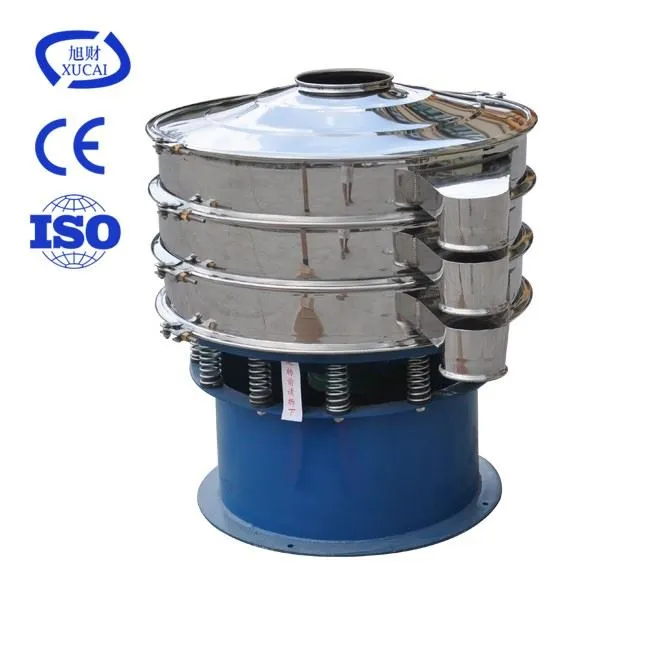

Guangzhou Xucai Environmental Technology Co., Ltd. is one of the leading manufacturers and suppliers of ultrasonic vibrating sieve in China. If you're going to buy customized ultrasonic vibrating sieve made in China, welcome to get quotation from our factory. For price consultation, contact us.
Ultrasonic vibrating sieve feature:
Ultrasonic vibrating screen is based on the general industry rotary vibrating screen. The ultrasonic cleaning device is introduced. It converts 220V, 50Hz or 110V, 60Hz electric energy into 18KHz high-frequency electric energy, and inputs the ultrasonic transducer to turn it into 18KHz mechanical Vibration, so as to achieve the purpose of efficient screening and rapid net cleaning, making the screening of ultra-fine powder easy. The system introduces a low-amplitude, high-frequency ultrasonic vibration wave (mechanical wave) on the screen on the basis of a traditional vibrating screen to improve the screening performance of ultra-fine powder. Especially suitable for users of high value-added fine powder.
The ultrasonic net applicable to the expansion of the ultrasonic system has the same ultrasonic power source, connected to a net cleaning transducer, and the radiating surface of the ultrasonic transducer is in contact with the blocked net surface, and the relative displacement can clear the blockage of the net port. It has the advantages of fast and efficient, improving the quality of cleaning screen, not changing the size of the screen, and not harming the surface quality of the screen. It can be widely used in test screens and working screens.
Technical parameters:
|
Model |
Sieve |
Effective |
Sieve |
Size |
Sieve |
Vibration |
Power |
|
TPM-400 |
360 |
0.09 |
2-325 |
580x580x560 |
1 |
1500 |
0.25 |
|
580x580x670 |
2 |
||||||
|
580x580x780 |
3 |
||||||
|
TPM-600 |
560 |
0.22 |
2-325 |
800x800x750 |
1 |
1500 |
0.55 |
|
800x800x890 |
2 |
||||||
|
800x800x1030 |
3 |
||||||
|
TPM-800 |
760 |
0.4 |
2-325 |
900x900x750 |
1 |
1500 |
0.75 |
|
900x900x890 |
2 |
||||||
|
900x900x1030 |
3 |
||||||
|
TPM-1000 |
930 |
0.63 |
2-325 |
1160x1160x810 |
1 |
1500 |
1.1 |
|
1160x1160x950 |
2 |
||||||
|
1160x1160x1090 |
3 |
||||||
|
TPM-1200 |
1130 |
0.95 |
2-325 |
1360x1360x885 |
1 |
1500 |
1.5 |
|
1360x1360x1050 |
2 |
||||||
|
1360x1360x1275 |
3 |
||||||
|
TPM-1500 |
1430 |
1.5 |
2-325 |
1850x1850x990 |
1 |
1500 |
2.2 |
|
1850x1850x1185 |
2 |
||||||
|
1850x1850x1350 |
3 |
||||||
|
TPM-1800 |
1730 |
2.3 |
2-325 |
2200x2200x1050 |
1 |
1500 |
2.2 |
|
2200x2200x1250 |
2 |
||||||
|
2200x2200x1450 |
3 |
Free technical and drawing program,accept according to customers need production machine.
We are plastic machine factory,focus on high quality machine and good service.
Why choose us?
1.More than 10 years experienced production staff.
2.Drop shipping it protect your business secret.
3.Within 24 hours quick response.On line teaching and deal with problems.
4.One stop plastic auxiliary equipment service.
5.Life-long technical support and free after-sale service.
6.Professional technical team and salesperson assists you with trouble shooting.
FAQ
1. Are you trading company or manufacturer?
A: we are manufacturer and production all series of plastic auxiliary machinery,our machine have CE certificate.
2. How long is your delivery time?
A:We have some in stock of normal model.If need to production new,usually need 5-15 days after received the all payment.
3. What is the MOQ?
A: 1 set
