Guangzhou Xucai Environmental Technology Co., Ltd. is one of the leading manufacturers and suppliers of plastic chemical drum crushing machine in China. If you're going to buy customized plastic chemical drum crushing machine made in China, welcome to get quotation from our factory. For price consultation, contact us.

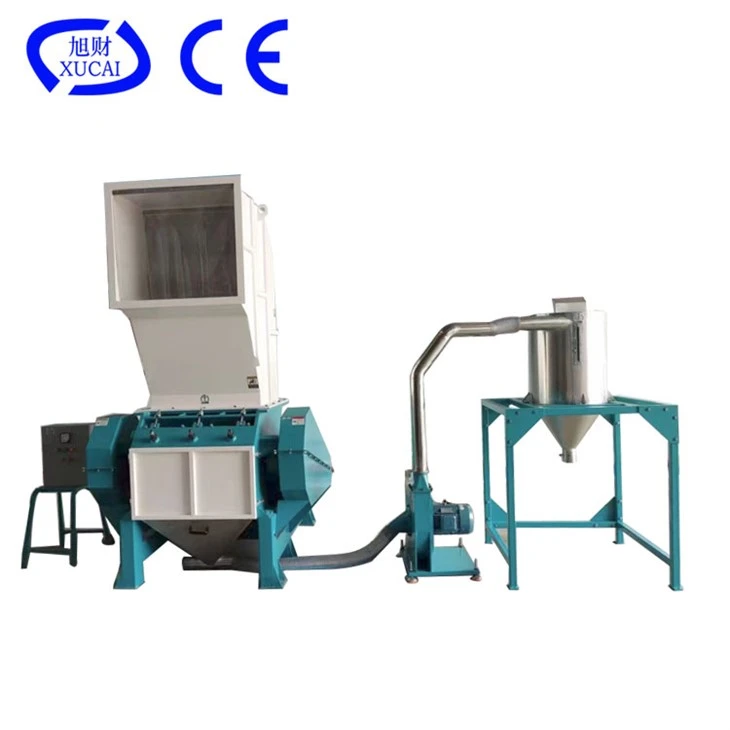

Plastic drum crushing machine feature:
The machine consists of a base saddle, motor, bearings, flywheel, chassis, belt, discharge mesh frame, knife shaft, blade, fixed blade, feeding hopper, and material plate. The drive spindle motor rotates the blade through the belt, allowing the material loaded onto the knife shaft blades to be sheared by the fixed blade in the housing.
It is used for crushing plastic barrels, hard plastic products, bottles, fiber, and similar materials. The crusher is easy to disassemble and assemble, requiring no complex operation. The feeding hopper is connected to the main body with fastening screws, which can be loosened for easy cleaning.
No foot screws are required; it can be installed on a smooth, stable concrete floor.
The knife is made of high-quality imported steel, allowing for repeated sharpening and extended use.
The machine has a large crushing capacity, high output, and stable operation.
The size and shape of the feeding hopper can be customized according to the user's raw material specifications.
Technical parameters:
|
Model |
Motor power (kw) |
Crushing chamber (mm) |
Crushing capacity (mm) |
Rotary blade |
Fixed blade |
Dimensions (mm) |
Weight (kg) |
|
TLD6040 |
15 |
600x425 |
150-400 |
2 |
6 |
1250x1110x1800 |
900 |
|
TLD6250 |
22 |
620x500 |
230-500 |
2 |
6 |
1460x1240x2070 |
1300 |
|
TLD8356 |
37 |
830x650 |
450-800 |
4 |
6 |
2160x1615x2790 |
2300 |
|
TLD1075 |
55 |
1030x750 |
550-1000 |
4 |
10/6 |
2300x2000x3150 |
3500 |
|
TLD10100 |
55 |
1030x1000 |
600-1200 |
4 |
10/6 |
2500x2000x3450 |
5000 |
|
TLD1275 |
75/55 |
1230x750 |
600-1300 |
4 |
10/6 |
2500x2300x3350 |
4300 |
|
TLD12100 |
75/55 |
1230x1000 |
700-1800 |
4 |
10/6 |
2500x2300x3550 |
6200 |
