Guangzhou Xucai Environmental Technology Co., Ltd. is one of the leading manufacturers and suppliers of chemicals plastic bucket crusher in China. If you're going to buy customized chemicals plastic bucket crusher made in China, welcome to get quotation from our factory. For price consultation, contact us.
Chemicals Plastic bucket crusher Features
These crushers feature SKD-11 alloy steel blades (hardness 57–59°), full-copper wiring motors (4–75 kW), and vertical hopper inlets for safe loading. Available in 13 models, they cover processing capacities from 30–2000 kg/h, with crushing chamber sizes ranging 250x200mm to 1530x1000mm. Core components include heavy-duty sealed bearings, Schneider Electric electrical parts, and customizable 4–50mm sieve screens. Key designs: screw/air cylinder chamber opening (for models ≥22kW), compatibility with recycling systems/conveyor belts, and safety limit switches. The equipment holds CE certification, with a 1-year warranty and post-sales video technical support.
Recycling & Material
What we use in production
PP strapping material
PE film material
denim fabric scrap
PU foam material
Features
The plastic bucket crusher is mainly used for crushing large plastic items such as chemical buckets, oil barrels, baskets, chairs, textiles, etc.
Large crushing chamber size and high volume allow more material to be processed quickly, ensuring fast crushing and efficient output.
Vertical hopper inlet design for easy and safe loading of materials.
Xucai brand plastic bucket crushers use heavy-duty bearings and secure sealing for smooth operation and long service life.
The blade is made of SKD-11 material, which is hard and durable. It crushes plastic products easily and has a long lifespan, reducing the need for frequent sharpening.
The motor is equipped with full copper wiring, ensuring low noise, minimal heat generation, and extended use.
Sieve screen hole sizes can be customized from 4 to 50mm according to customer needs.
Customized crushers can be connected to recycling systems and conveyor belts for specific applications.
Technical parameters
|
Model |
Crushing chamber size(mm) |
Crushing Capacity (kg/h) |
Power (kw) |
Fixed blade (pcs) |
Rotary blade (pcs) |
Mechanical Dimension(mm) |
Weight (kg) |
|
TLE2520 |
250x200 |
30-50 |
4 |
2 |
3 |
1020x670x1090 |
150 |
|
TLE3126 |
310x240 |
50-80 |
5.5 |
2 |
3 |
1150x720x1220 |
220 |
|
TLE4132 |
410x320 |
80-150 |
7.5 |
2 |
6 |
1080x860x1370 |
430 |
|
TLE5132 |
510x320 |
100-300 |
11 |
2 |
6 |
1200x990x1550 |
570 |
|
TLE6033 |
600x330 |
150-400 |
15 |
2 |
6 |
1290x1130x1670 |
730 |
|
TLE6246 |
620x460 |
200-500 |
22 |
2 |
6 |
1600x1240x1970 |
1000 |
|
TLE7246 |
720x460 |
250-550 |
22 |
2 |
6 |
1600x1340x2100 |
1200 |
|
TLE8146 |
810x460 |
300-600 |
30 |
4 |
6 |
1650x1450x2080 |
1500 |
|
TLE8256 |
820x560 |
350-800 |
37 |
4 |
6 |
1800x1480x2300 |
1800 |
|
TLE1065 |
1020x650 |
350-900 |
45 |
4 |
12 |
2010x1750x2660 |
2400 |
|
TLE1083 |
1030x830 |
500-1200 |
55 |
4 |
15 |
2900x2120x3420 |
4000 |
|
TLE1283 |
1230x830 |
600-1300 |
75 |
4 |
9/18 |
3010x2320x3700 |
5000 |
|
TLE15100 |
1530x1000 |
700-2000 |
75 |
6/10 |
9/15 |
3010x2550x3700 |
7000 |
Details
Crushing Chamber
Premium wear-resistant pulley and belt assembly, ensures smooth power transmission and minimal maintenance needs.
Screen
4-50mm adjustable aperture, made of high-strength steel, customizable to meet diverse granularity requirements.
Motor
High-efficiency copper-wound core motor, low noise, energy-saving, with overload protection for long-term stable operation.

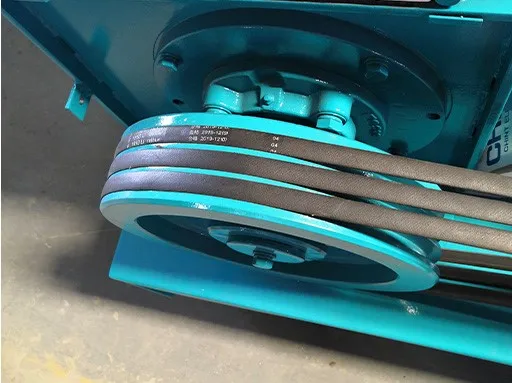

Pulley
The large-diameter pulley ensures stable high-speed operation, features excellent concentricity, and boasts an extended service life.
Feeding Hopper
Vertical structure with large opening, stainless steel material, enables safe and convenient loading of bulky items.
Safety Switch
Industrial-grade limit switch, withstands 10,000+ operations, effectively safeguards operator safety during use.
Control Switch
Ergonomic design with clear function markings, simple to operate, supports quick start/stop and adjustment.
Electrical Components
Authentic Schneider Electric parts, certified for reliability, minimizes electrical system failure risks.
Bearing
Heavy-duty sealed bearings, dust and moisture-proof, guarantees smooth rotation even in harsh working environments.
Application Scenarios
Chemical Raw Material Warehousing & Logistics Enterprises: Safely crush discarded chemical packaging barrels, oil drums, and solvent containers-eliminating risks of residual chemical leakage while reducing waste volume for compliant disposal or recycling.
Automotive Parts Production Industry: Shred bulky plastic waste from manufacturing (e.g., discarded bumpers, interior trim scraps, plastic chassis components) to support closed-loop recycling in auto parts production.
Municipal Sanitation & Solid Waste Management Departments: Handle urban large-volume plastic waste (e.g., discarded public facility plastic parts, broken plastic furniture, oversized packaging) to reduce landfill space and improve urban plastic recycling rates.
Agricultural & Horticultural Supplies Enterprises: Crush waste large agricultural plastic equipment (e.g., irrigation tanks, greenhouse plastic frames, large seedling trays) for resource reuse, aligning with eco-friendly agricultural development policies.
fAQ
Q1: How to select the right model for our processing needs?
A1: Choose based on daily bulky plastic volume: TLE2520 (30–50kg/h) for small-scale operations; TLE15100 (700–2000kg/h) for large recycling plants-we provide free sizing consulting.
Q2: Can the crusher be customized to connect with our existing conveyor belt?
A2: Yes, we offer customization for integration with conveyor belts and recycling systems to match your production line.
Q3: What is the warranty and after-sales support?
A3: The entire machine comes with a 1-year warranty; we provide 24/7 video technical support and global spare parts supply.
Q4: Are the sieve mesh sizes fully customizable?
A4: Yes, mesh sizes can be tailored from 4–50mm to meet your specific particle size requirements for downstream processing.
Q5: Does the product meet international safety standards?
A5: Yes, all models hold CE certification, complying with EU industrial safety and electromagnetic compatibility requirements for global market access.
