Film Plastic Bag Crusher Features

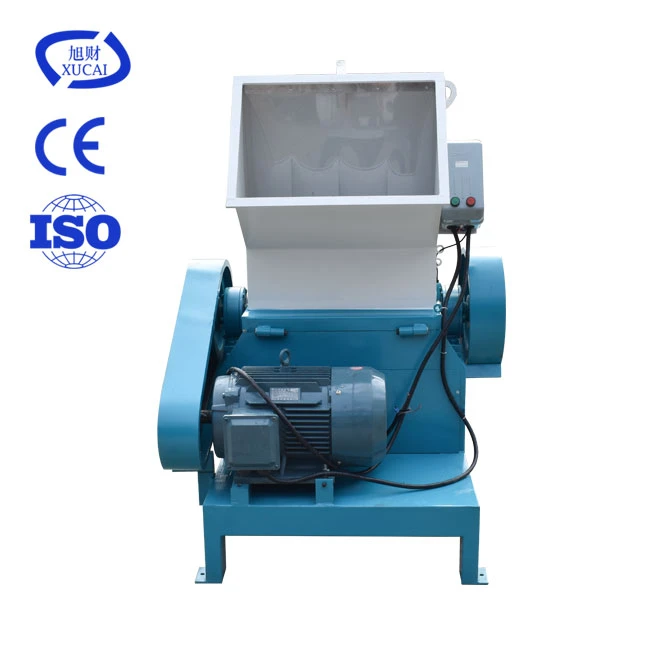

The Film Plastic Bag Crusher is a high-performance industrial machine designed to handle the unique physical properties of soft, ductile plastics. Unlike rigid plastics that shatter upon impact, films require precision cutting. This equipment features a high-speed rotor equipped with staggered blades that meet stationary knives at a precise angle, ensuring that even the thinnest PE or PP films are sliced cleanly rather than being pulled through the machine.
The structural integrity of this Industrial Film Granulator is built for 24/7 operation. The crushing chamber is designed to maximize throughput while minimizing the internal heat buildup that can lead to material sticking. By reducing the volume of plastic bags and films by up to 90%, this machine significantly lowers transportation and storage costs for recycling facilities. Whether integrated into a full washing line or used as a standalone unit for post-industrial scrap, our Film Plastic Bag Crusher provides the consistency required for high-grade pelletizing.
Recycling & Material
What we use in production
PP strapping material
PE film material
denim fabric scrap
PU foam material
Features
Anti-Wrapping Rotor Design: The specialized V-shaped blade arrangement ensures that film material is forced toward the center of the chamber, eliminating the risk of fibers wrapping around the main shaft.
High-Grade D2 Steel Blades: We utilize vacuum-heat-treated alloy steel, which retains its sharpness significantly longer than standard carbon steel when processing abrasive agricultural films.
Enhanced Cooling Airflow: The chamber design promotes natural air circulation, preventing the "gumming up" of materials with low melting points during high-volume shifts.
Heavy-Duty Bearing Isolation: To ensure longevity, the main bearings are housed outside the crushing chamber, protecting them from dust contamination and thermal stress.
Simplified Screen Access: A hydraulic or manual tilt-back hopper allows operators to clean the machine or swap screens in minutes, drastically reducing downtime between material batches.
Energy-to-Torque Optimization: Our drive systems are calibrated to provide high torque at the point of impact, reducing electricity consumption by up to 20% compared to older-generation models.
Technical parameters
|
Model |
Crushing chamber |
Crushing |
Power |
Fixed |
Rotation |
Mechanical |
Weight |
|
TLP2520 |
250x200 |
100-150 |
5.5 |
2 |
15 |
940x600x1090 |
175 |
|
TLP3126 |
310x265 |
150-200 |
7.5 |
2 |
9 |
1150x720x1220 |
350 |
|
TLP4128 |
410x280 |
200-300 |
10 |
2 |
12 |
1200x860x1350 |
450 |
|
TLP5032 |
500x320 |
300-400 |
15 |
2 |
15 |
1300x1000x1530 |
680 |
|

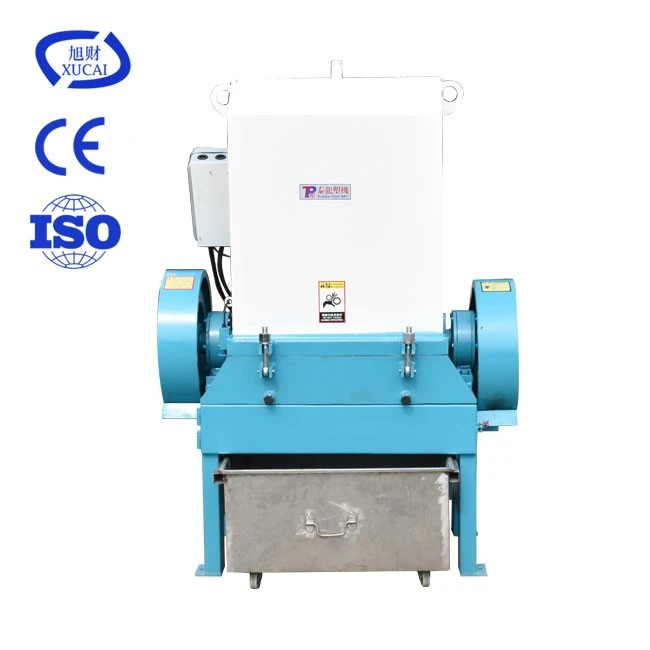

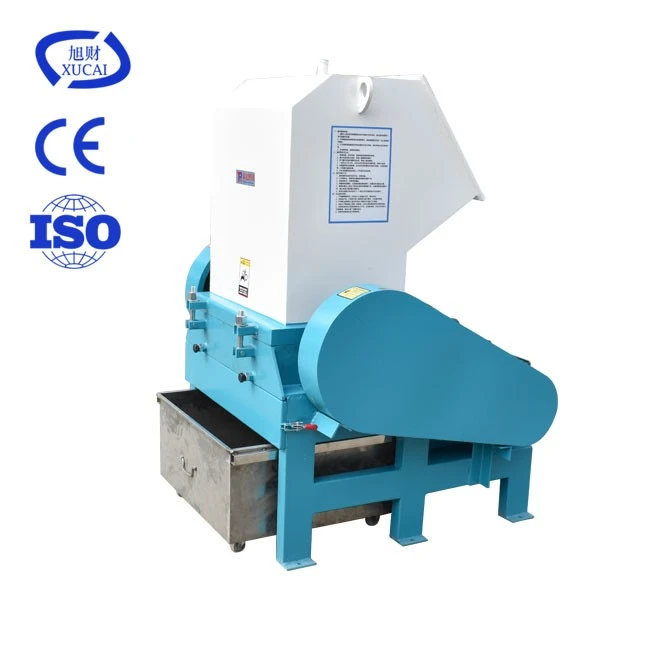

TLP6032 |
600x320 |
400-500 |
20 |
2 |
18 |
1400x1100x1600 |
900 |
|
TLP6246 |
620x460 |
500-600 |
30 |
2 |
18 |
1600x1200x1750 |
1200 |
|
TLP7146 |
710x460 |
600-700 |
30 |
2 |
21 |
1900x1350x2100 |
1600 |
|
TLP8146 |
810x460 |
700-800 |
40 |
4 |
24 |
2000x1500x2100 |
2000 |
|
TLP8156 |
810x560 |
800-900 |
50 |
4 |
24 |
2000x1500x2250 |
2400 |
|
TLP1065 |
1020x650 |
900-1000 |
50 |
4 |
30 |
2100x1750x2400 |
3000 |
|
TLP1072 |
1020x720 |
1000-1400 |
60 |
4 |
30 |
2220x1800x2500 |
3500 |
Details
Crushing Chamber
CNC-machined to ensure precise tolerances, the chamber features a wear-resistant lining and a layout that promotes rapid material throughput and prevents blockages.
Screen
Available in various hole diameters (8mm to 20mm), the heavy-duty screen controls output size and is easily removable for routine cleaning or replacement.
Motor
We utilize high-efficiency IP55-rated motors that provide consistent torque, featuring copper windings and thermal overload protection for demanding 24/7 industrial production cycles.
Pulley
The oversized, balanced cast-iron pulleys act as flywheels, providing additional inertial force to handle sudden surges in material volume without stalling the motor.
Feeding Hopper
Designed with a deep, sound-proofed throat to prevent material splash-back, the hopper's geometry is optimized for the manual or conveyor feeding of bulky bags.
Safety Switch
Integrated limit switches ensure the machine cannot start if the hopper or screen cradle is open, meeting strict international industrial safety standards.
Control Switch
The user-friendly interface includes an emergency stop and clear operational indicators, allowing operators to manage the machine's power status safely and efficiently.
Electrical Components
Equipped with world-class contactors and breakers (such as Schneider or Siemens), ensuring long-term electrical reliability and protection against voltage fluctuations.
Bearing
High-precision, external bearing blocks are positioned away from the crushing chamber to prevent dust ingress and heat transfer, significantly extending the component's lifespan.
Application Scenarios
Logistics & Warehousing: Processing discarded stretch film, pallet wraps, and bubble packaging.
Agricultural Recycling: Crushing used greenhouse films, mulch plastics, and irrigation tubing.
Industrial Packaging: Handling off-cuts and rejects from film blowing and bag-making production lines.
Textile & Woven Goods: Size reduction of PP woven bags, jumbo bags (FIBC), and non-woven fabric scraps.
fAQ
Q: How does this machine prevent film from melting during the process?
A: The Film Plastic Bag Crusher uses a precision-gap scissor cut which generates significantly less friction heat than traditional impact-based crushers, combined with an optimized airflow chamber.
Q: Can it handle wet film coming from a wash line?
A: Yes, we offer stainless steel configurations and specialized drainage ports for applications where the film is pre-washed or contains high moisture levels.
Q: What is the typical output flake size?
A: The standard screen size produces 10mm to 12mm flakes, though screens can be customized from 8mm to 20mm depending on your downstream pelletizing requirements.
