Guangzhou Xucai Environmental Technology Co., Ltd. is one of the leading manufacturers and suppliers of two shaft rubber tire shredder in China. If you're going to buy customized two shaft rubber tire shredder made in China, welcome to get quotation from our factory. For price consultation, contact us.
Two shaft shredder feature:

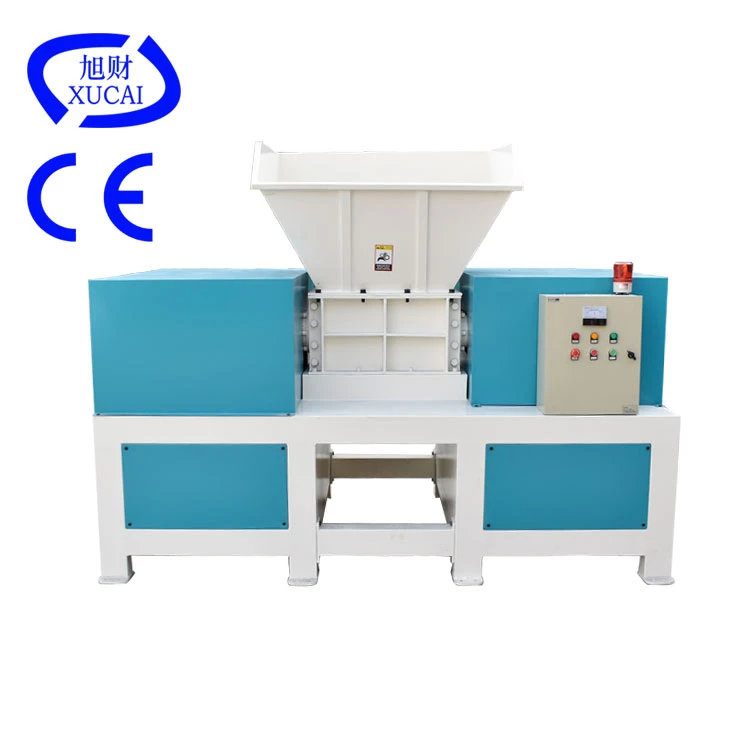

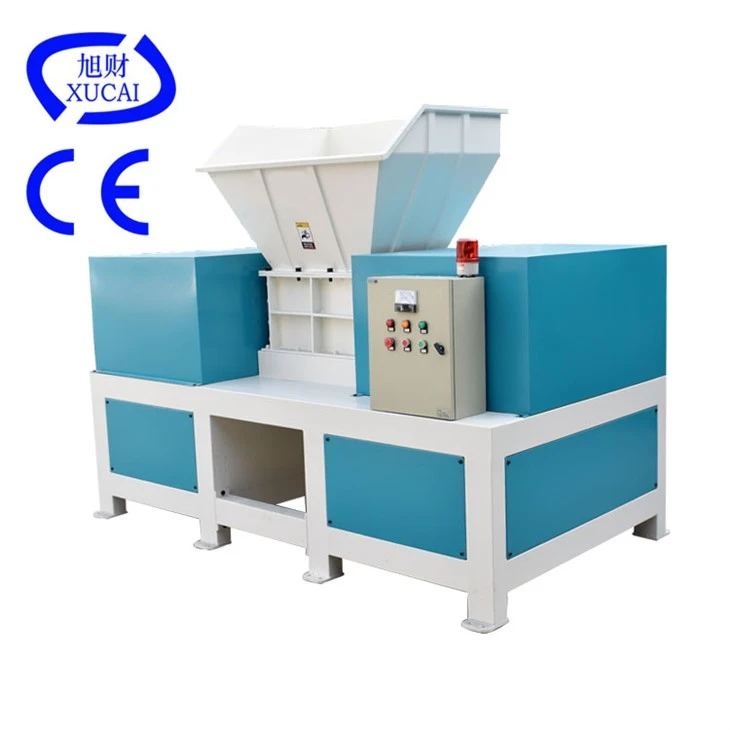

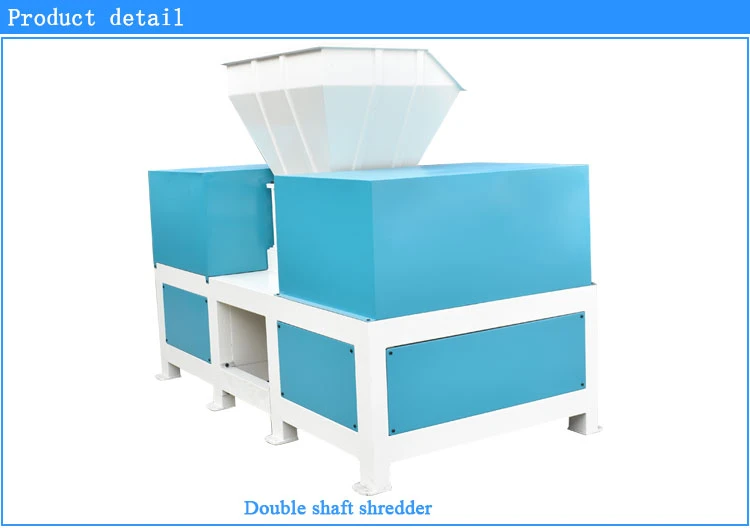

1.The two-shaft shredder is mainly composed of a worm gear reducer, casing, frame, combined spiral tooth cutters, driven shaft, large gear, small gear, and other parts.
2.The motor reducer is directly installed on the driving shaft of the shredder, transferring motion to the driven shaft through gears of different sizes, so that the spiral tooth cutters on the main and secondary shafts move in relative motion.

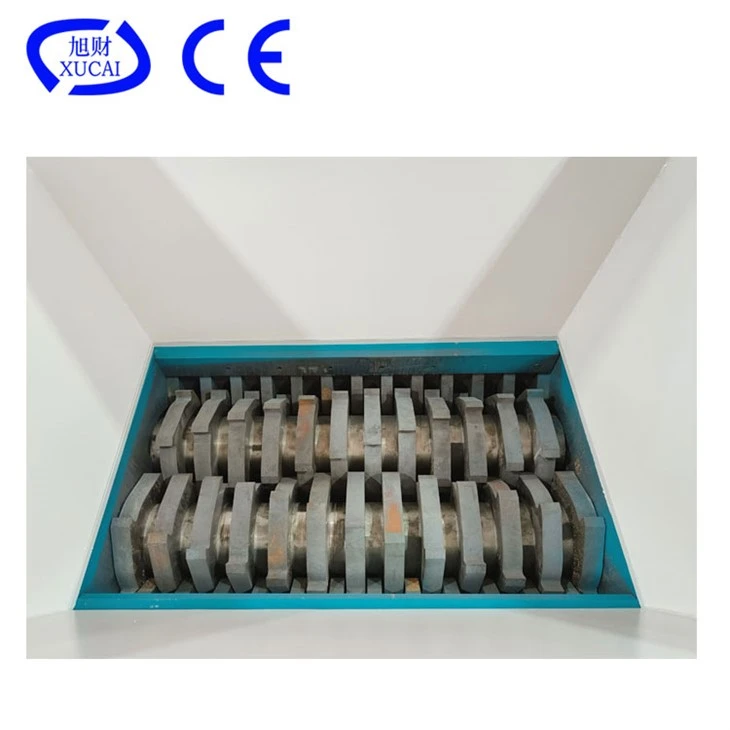

3.The spiral tooth cutters on the main and secondary shafts are staggered, causing the material to be squeezed, torn, and cut simultaneously, which results in the material being broken down.
4.It has the advantages of high torque, large output, quiet operation, and wear resistance.
5.The machine's drive system is equipped with electrical protection, effectively preventing equipment damage caused by accidental failures.
6.The circuit board shredder uses microcomputer (PC) automatic control and is equipped with start, stop, reverse, and overload automatic reverse control functions.
Technical parameters:
|
Model |
Diameter of Shredding Chamber(mm) |
Shredding capacity (kg/h) |
Motor Power (kw) |
Cutter quantity (pcs) |
Cutter thickness (mm) |
Rotor diameter (mm) |
Mechanical Dimension (mm) |
Weight (kg) |
|
TL300 |
300x300 |
200-300 |
2.2 |
26 |
11 |
165 |
900x500x1065 |
300 |
|
TL400 |
402x300 |
300-400 |
3 |
34 |
11 |
165 |
1000x500x1065 |
400 |
|
TL600 |
600x400 |
500-800 |
7.5 |
30 |
20 |
220 |
1500x1230x1750 |
1350 |
|
TL800 |
800x600 |
1000-2000 |
30/37 |
20 |
40 |
300 |
2980x1350x2480 |
2800 |
|
TL1000 |
1000x600 |
2500-3500 |
37 |
25 |
40 |
300 |
3200x1350x2480 |
3600 |
|
TL1200 |
1200x600 |
3000-5000 |
45 |
30 |
40 |
300 |
3500x1800x2600 |
4600 |
|
TL1400 |
1410x810 |
5000-20000 |
45 |
28 |
50 |
440 |
3700x2200x2650 |
7000 |
The primary function of the two shaft shredder is to crush, cut, and tear various materials. It is especially suitable for processing large or difficult-to-crush items, such as waste metal, plastic, paper, tires, wood, and other materials, to facilitate better recycling.
Our Advantages
1.Competitive Pricing: We offer factory-direct sales, and our machines are manufactured in batches to reduce production costs.
2.Quick Response to Breakdowns: In the event of a breakdown, we can respond within 8 hours and provide a solution.
3.11 Years of Industry Experience: We have a professional production team and conduct strict quality checks on machines after completion.
4.Free Technical and Training Support: We offer free technical support and training services.
5.1-Year Warranty: We provide a 1-year warranty with free replacement of spare parts during the warranty period.
6.Professional Sales Team: Our sales team is knowledgeable in export trade terms, modes of transportation, payment terms, and export documentation requirements.
